VL TVE Activate 01 Module

Introduction

VL TVE Activate 01 is a System Screen module in Template Builder. It powers the TVE device activation page — the place where a customer enters the code shown on a TV or OTT device so that device can use the same TV provider access as their account.

On the website, this experience typically lives at /tveactivate. The customer enters an activation code, then chooses a TV provider (when required) to finish linking the device.

This article explains how to create the TVE Activate page in Template Builder, configure VL TVE Activate 01, publish it, and verify the experience on the web.

Purpose

The purpose of this article is to help you:

• Create a TVE Activate System Screen in Template Builder
• Add and configure the VL TVE Activate 01 module
• Edit activation copy, Roku options, errors, and brand color
• Understand what customers see when they activate a TVE device on the website
• Publish and verify the live TVE Activate page

Scope

This article covers:

• Creating a System Screen page for TVE device activation in Template Builder
• Adding VL TVE Activate 01 to the page layout
• Module settings: Roku and QR options, Localization, Errors, and Brand
• How TVE Activate appears on the website, including sign-in and Choose a Provider

It does not cover:

• VL TVE 01 (TV provider connect at /tve)
• VL Link Your Account / Activate Device (account-to-device linking that is not this TVE Activate module)
• Enabling TVE or configuring TV provider credentials in AppCMS
• VL Authentication 01 / VL Authentication 02 as the main sign-in page (except how activation sends unsigned customers to sign in)

Prerequisites

Before you begin, ensure you have:

• Access to Template Builder for your site
• Access to ViewLift Tools / AppCMS to confirm TVE is enabled and TV providers are configured
• A test activation code from a TV or OTT device (or your usual TVE test device)
• Copy ready: web title, subtitle, placeholder, Activate button, tooltip, and retry / session error text

Example used in this article
Throughout the steps below we use a TVE Activate page named TVE Activate at path /tveactivate. Replace the sample values with your own.

TVE Activate flow overview (website)

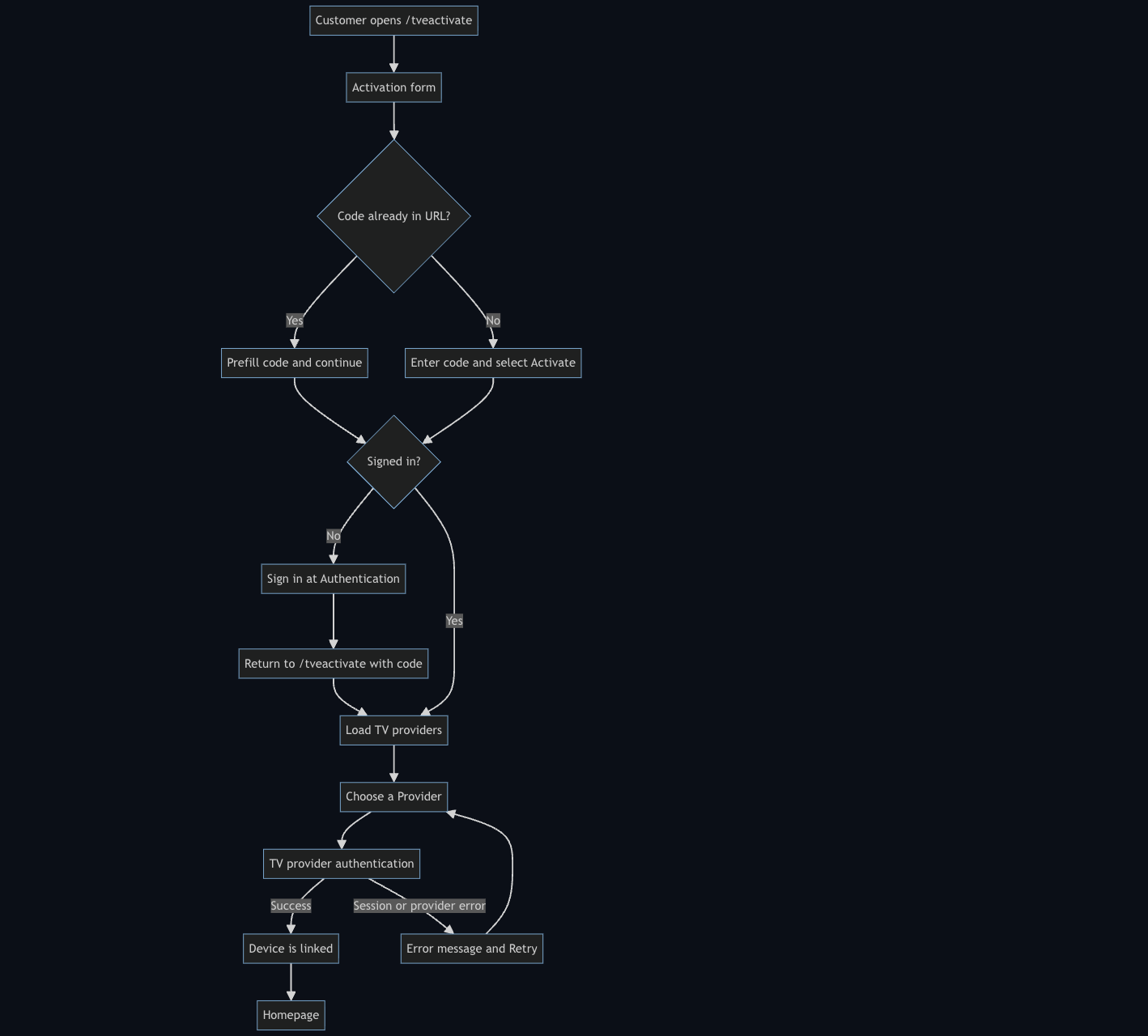

The flowchart below shows the typical customer journey on the website when VL TVE Activate 01 is published at /tveactivate.

Notes

• Customers often arrive from a TV or OTT device that displays a code, or from a deep link such as /tveactivate?code=YOURCODE.
• The page chrome includes Back and a close control.
• Unsigned customers who continue activation are sent to Authentication. After sign-in they return to /tveactivate (with the code in the URL when it was stored).
• Choose a Provider tiles come from AppCMS TVE settings, matched to providers available through TV provider authentication.
• After a successful provider step, the customer typically goes to the homepage. A Roku box activation can go to a thank-you page instead.
• If Activate Roku Device is on, or the URL includes device=roku_box, the site treats the session as a Roku activation.

Step 1: Open Template Builder

1. Log into ViewLift Tools.
2. Open AppCMS → Edit Template Builder (or open Template Builder for your site from your usual entry point).
3. Confirm you are on the correct site and language (if localization is enabled, use the language selector on the Template Builder home screen before editing page copy).

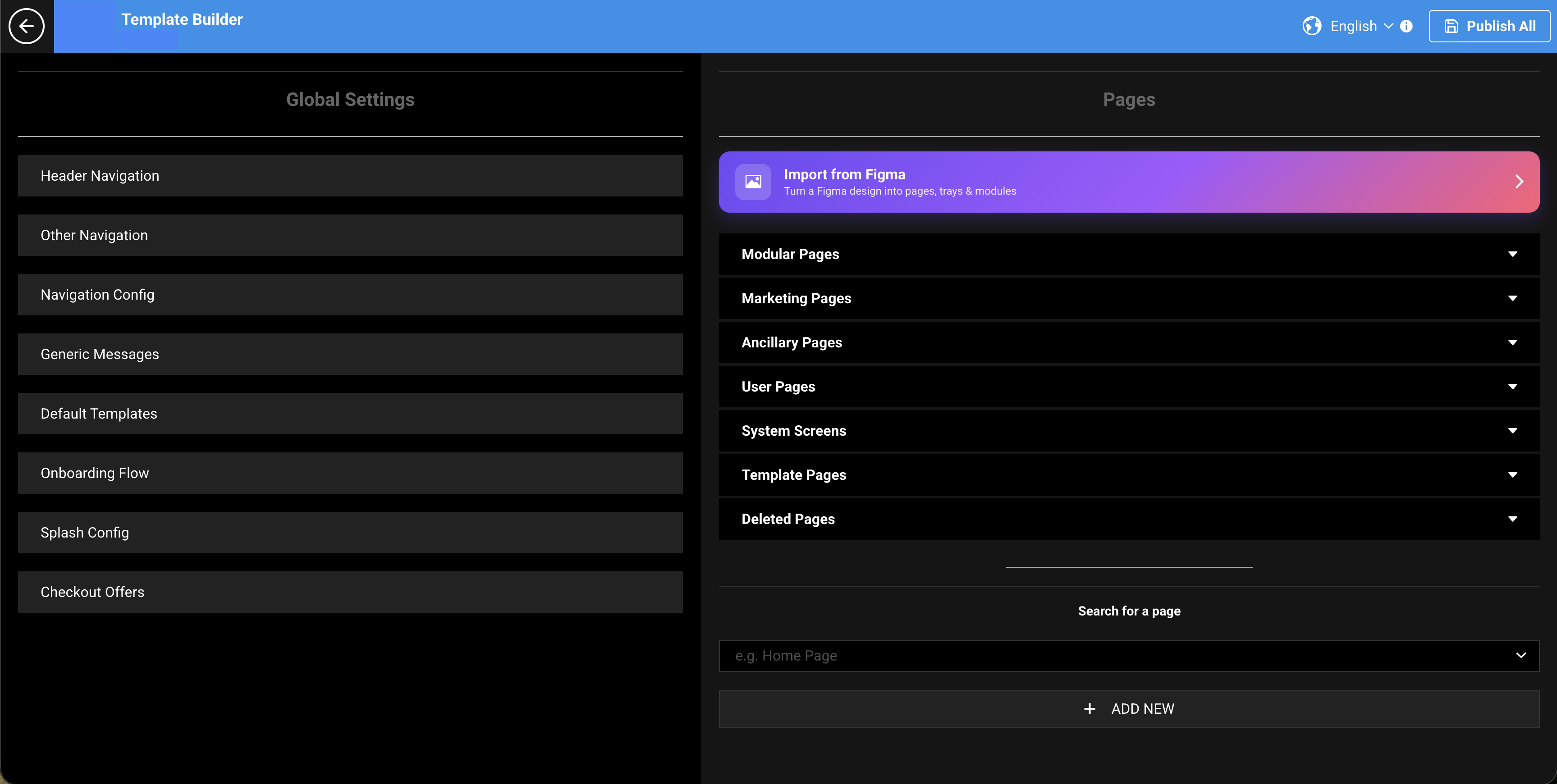

Template Builder home. From here you create pages and open System Screens.

Step 2: Create the TVE Activate System Screen

The TVE Activate page must be a System Screen so that VL TVE Activate 01 is available in the module picker.

1. In Template Builder, go to Pages.
2. Select + ADD NEW (or Create a New Page).
3. Enter New Page Name: TVE Activate (or your preferred name).
4. In New Page Type * Developers Only, select System Screen.
5. Optionally set Target Language (If localized Page) if you are creating a language-specific TVE Activate page.
6. Select CREATE.

Set the page path

1. On Page Settings, set the page path to /tveactivate (recommended).
2. Confirm the page type is System Screen.
3. Save page settings if prompted.

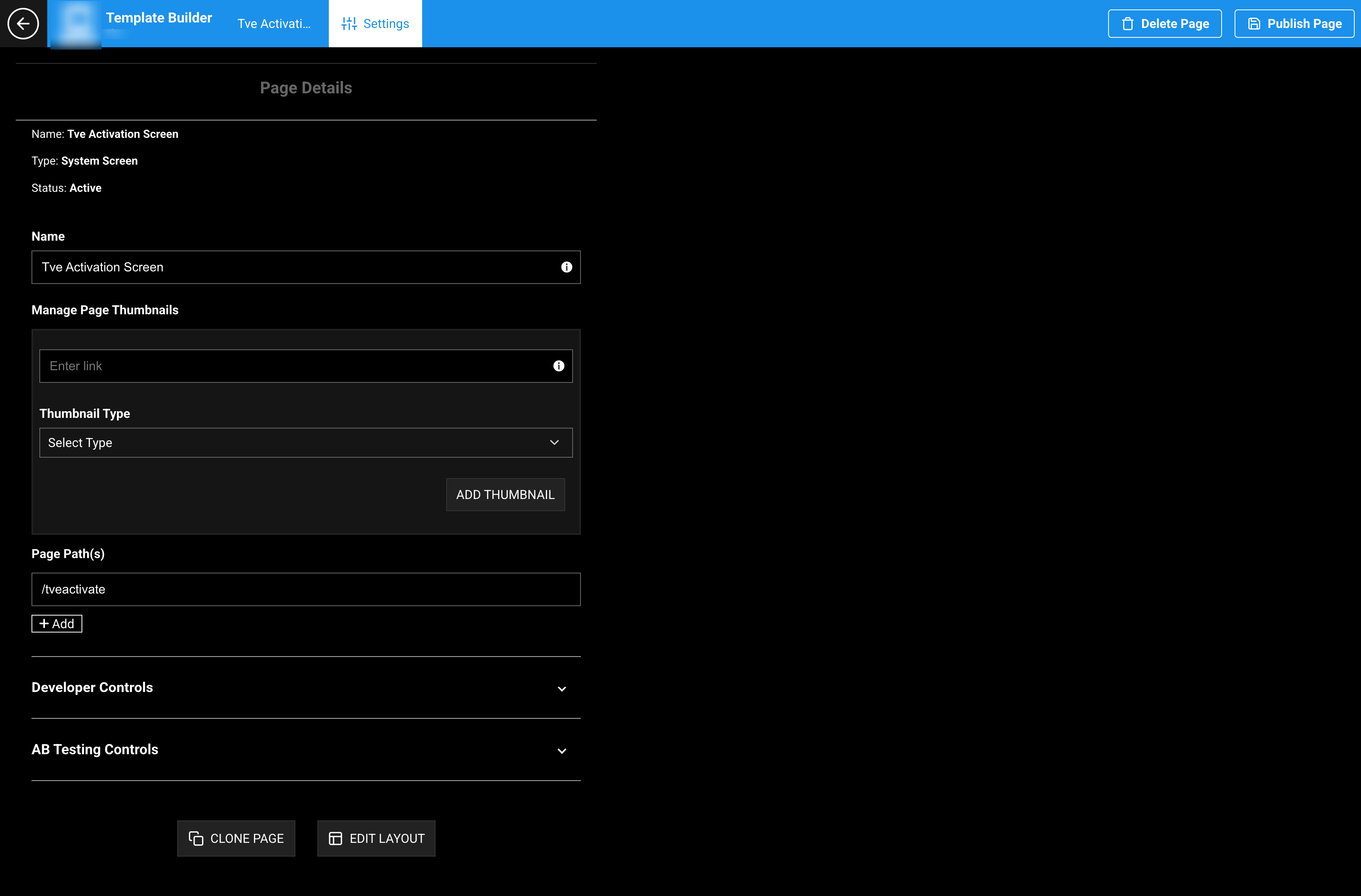

Page Settings. Set the path to /tveactivate so TV device links and post-login return URLs resolve correctly.

Tip: Keep /tveactivate consistent. Device deep links can include a code, for example /tveactivate?code=YOURCODE. Connecting a provider from a browser or app (without a device code) uses VL TVE 01 at /tve.

Step 3: Add VL TVE Activate 01 to the layout

1. Open the TVE Activate page.
2. Select Edit Layout.
3. Select Add a New Module.
4. Because the page is a System Screen, the picker shows system modules.
5. Search for or select VL TVE Activate 01.
6. Insert the module into the page layout.

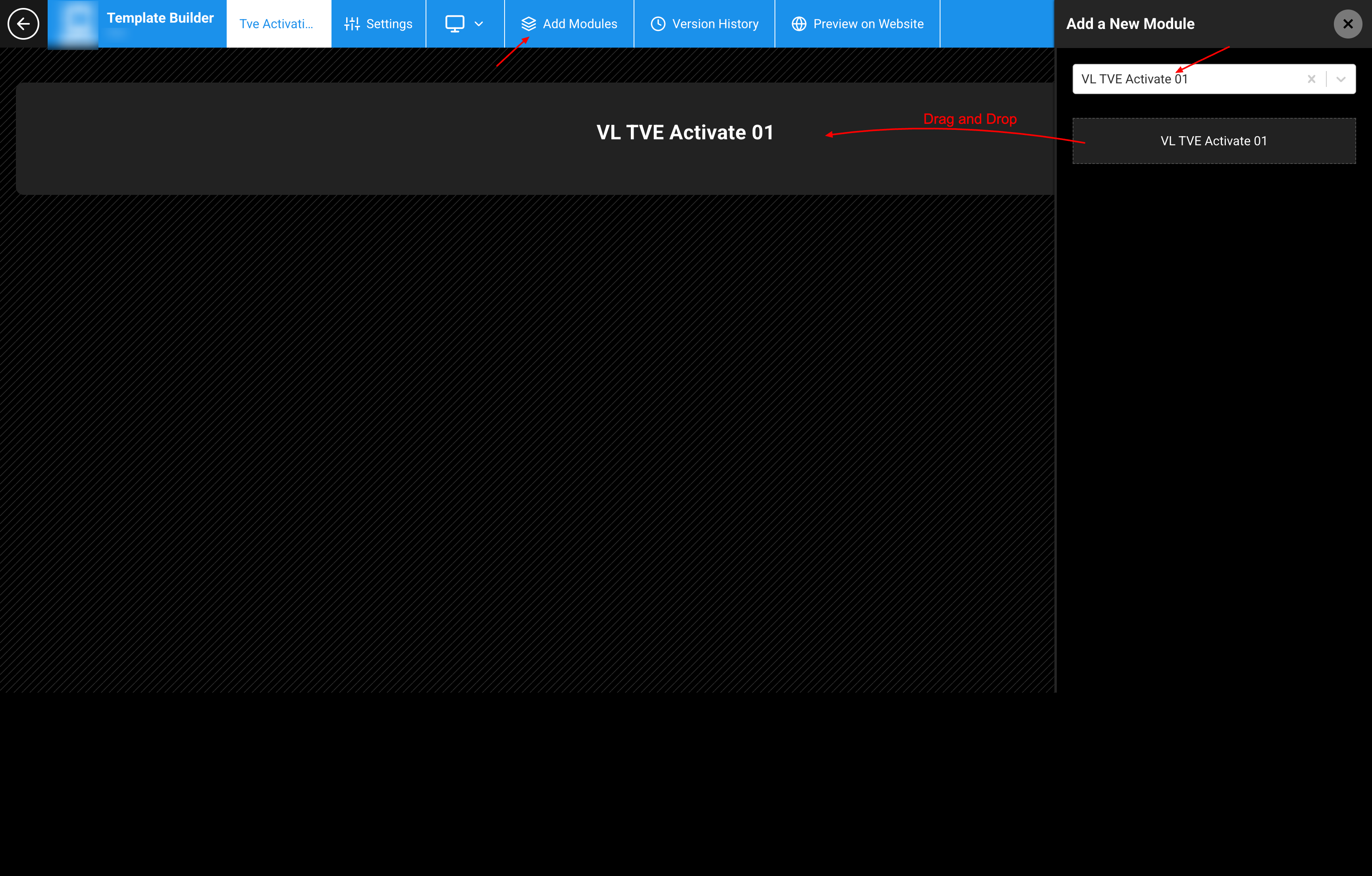

Edit Layout → Add a New Module. Search for and insert VL TVE Activate 01.

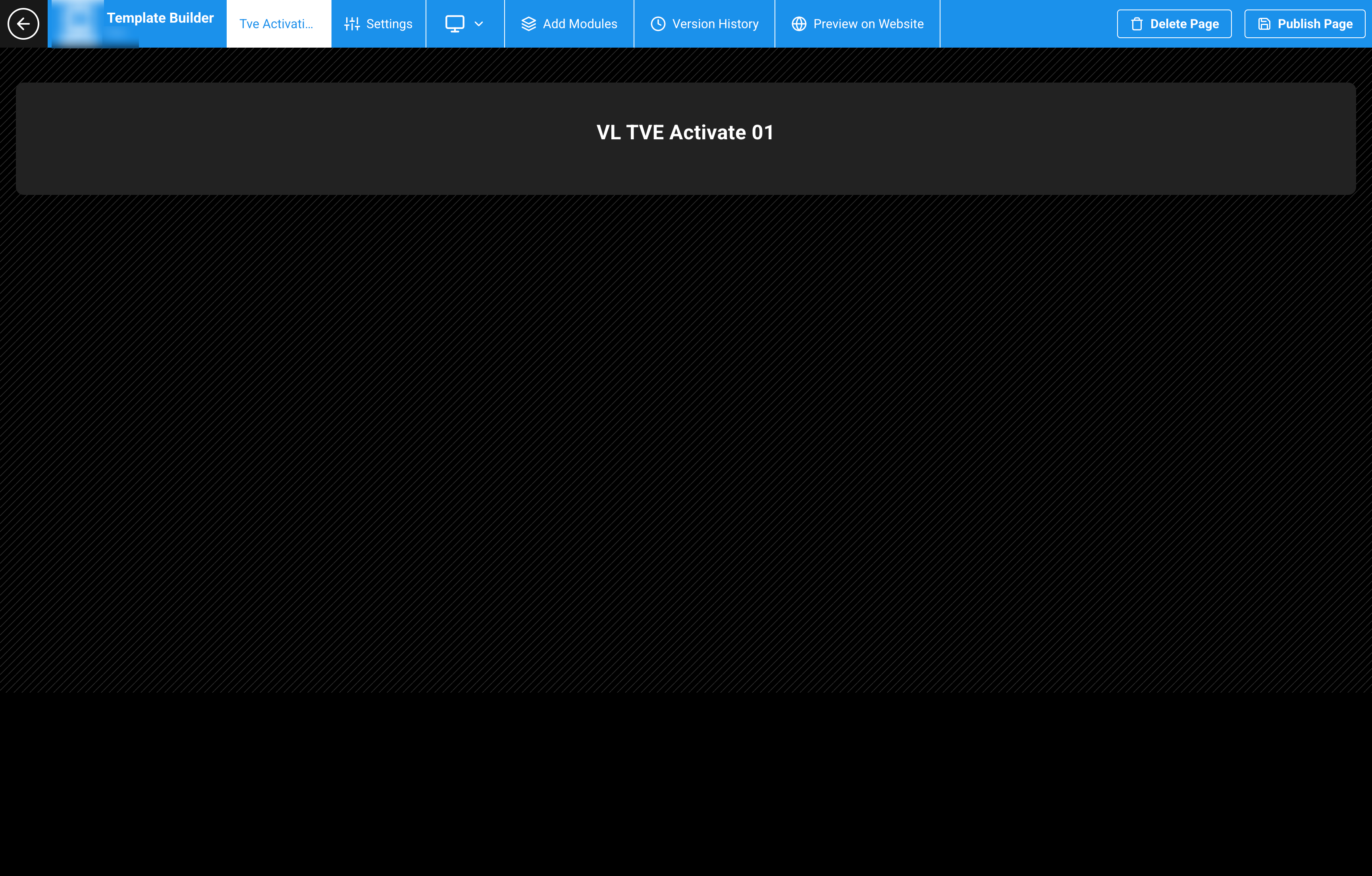

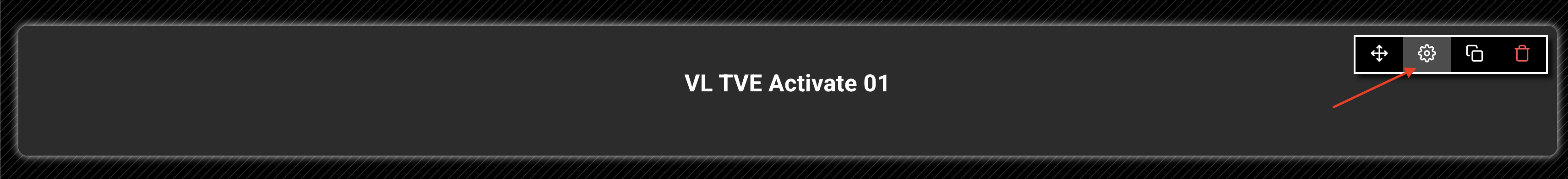

TVE Activate System Screen layout with VL TVE Activate 01 placed on the page.

System Screens typically use a single primary system module. Avoid stacking unrelated content trays on this page.

Step 4: Configure activation options

Open the VL TVE Activate 01 module settings. These fields sit above Localization.

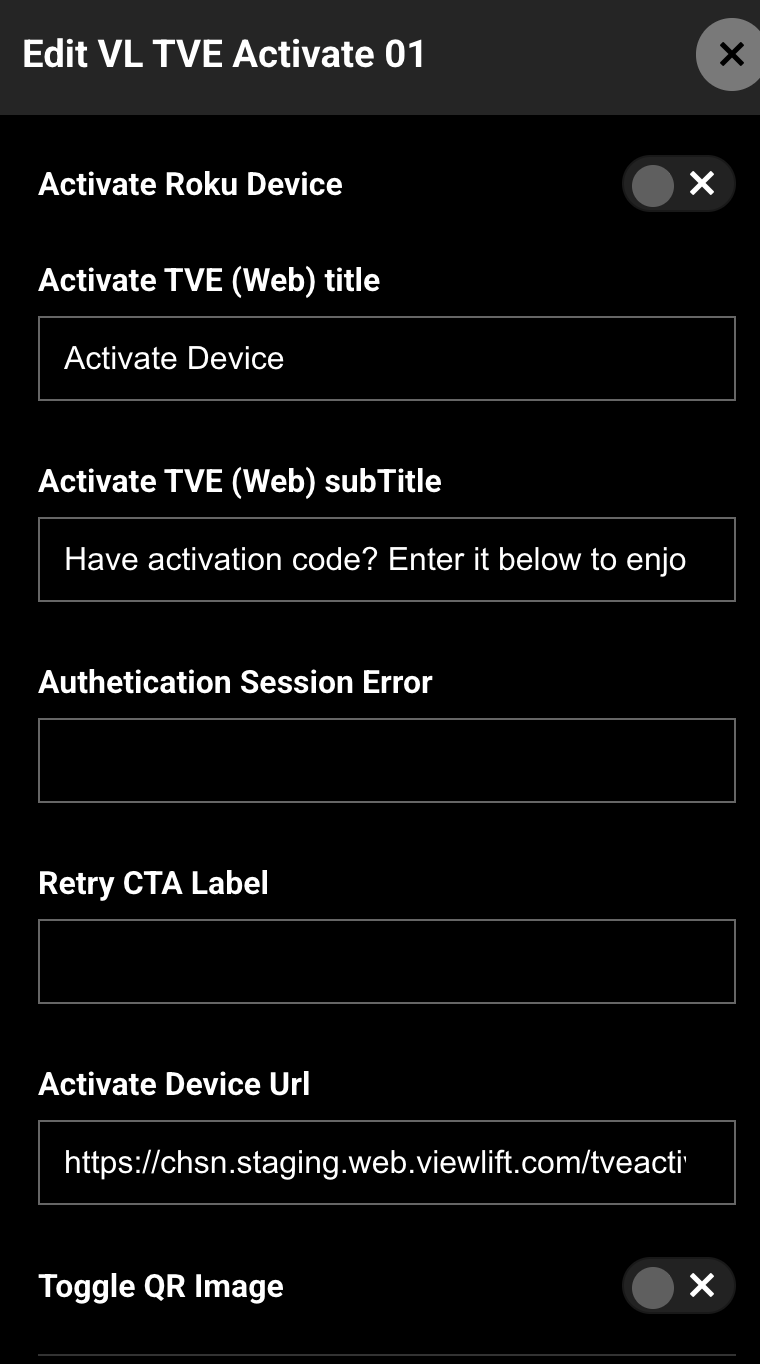

Activate Roku Device, web title and subtitle, session error, Retry, Activate Device Url, and Toggle QR Image.

On the website code-entry form, customers see the headline Activate Device (default), Activate TVE (Web) subTitle, the code field, tooltip, and Activate. Retry CTA Label and Authetication Session Error appear after a provider-session error, not on the first form.

Step 5: Configure Localization

The Localization block includes additional titles and device-screen copy.

The website form uses Input Box Placeholder Text, Activate, Case Sensitve Tooltip Text, and Activate TVE (Web) subTitle. Device-oriented lines (Go To, Get New Code, QR title and description) are for activation screens that show those elements.

Step 6: Configure Errors

Expand Errors.

On the website provider step, a failed session uses Authetication Session Error (or a generic error if that field is empty) and Retry CTA Label. Sign-in during activation uses your published Authentication page; keep matching sign-in error copy there as well.

Step 7: Configure Brand

Expand Brand.

Match this color to VL TVE 01 so connect and activate feel like one product.

Step 8: Save and publish the TVE Activate page

1. Save the module settings.
2. Review the page layout once more.
3. Publish the TVE Activate System Screen.

Until the page is published, apps and web will not show your latest TVE Activate configuration.

Changes can take several minutes to appear because of caching. To verify sooner, use a private window, another browser, or clear cookies and cache.

If unsigned customers must sign in during activation, also publish an Authentication page (see VL Authentication 01) at the path your site uses for sign-in (typically /authentication).

Step 9: How it looks on the website

After publish, open your site’s TVE Activate URL, for example:

https://www.example.com/tveactivate

Activation form

Customers usually see:

• Back and a close control in the flow chrome
• Headline Activate Device (default)
• Activate TVE (Web) subTitle
• Code field with Input Box Placeholder Text
• Tooltip with Case Sensitve Tooltip Text
• Activate

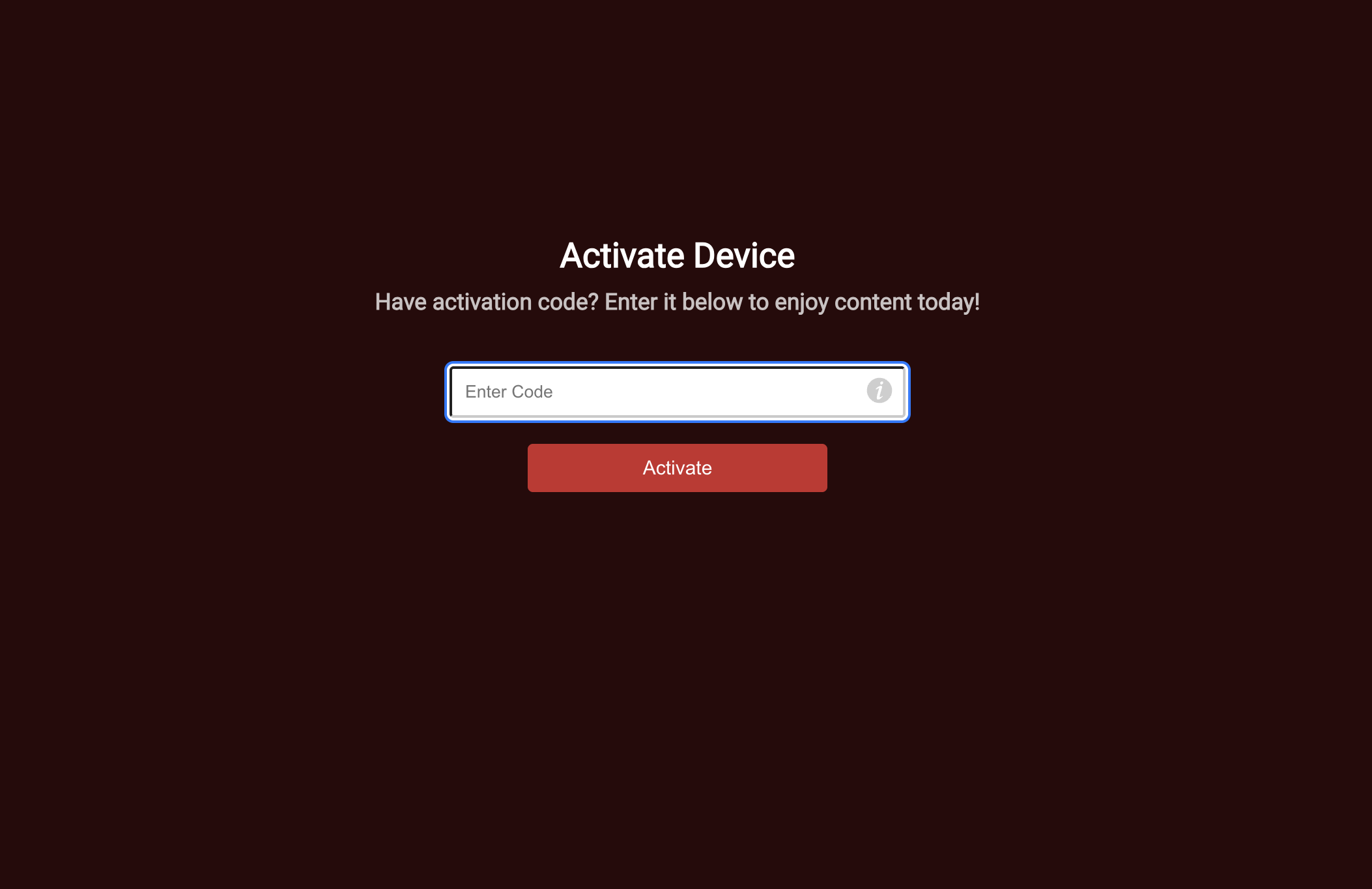

Website /tveactivate form with title, code field, tooltip, and Activate.

Signed-out customer

1. The customer can open /tveactivate and type a code.
2. Selecting Activate sends them to Authentication when a signed-in session is required.
3. After sign-in they return to /tveactivate (with ?code= when the code was stored).
4. If they opened /tveactivate?code=YOURCODE while signed out, the code is stored for that return trip.

Signed-in customer

1. Enter a code and select Activate, or open /tveactivate?code=YOURCODE so the code is filled and the flow continues.
2. The page loads available TV providers and shows Choose a Provider.
3. Provider tiles use logos from AppCMS TVE settings and MVPD Background Color.
4. Selecting a provider opens that TV provider’s authentication experience.
5. On success, the customer typically goes to the homepage.
6. If the provider session cannot continue, the page shows Authetication Session Error (or a generic error) and Retry.

Choose a Provider after a code is submitted, with TV provider logos.

Roku and other device variants

Verification checklist

• TVE Activate page exists as a System Screen
• Page path is /tveactivate
• VL TVE Activate 01 is on the layout
• TVE is enabled in AppCMS and TV providers are configured
• Web subtitle, placeholder, Activate, and tooltip copy are reviewed
• Retry and session error copy are reviewed
• MVPD Background Color matches the site
• Activate Roku Device is on only if this page is for Roku activation
• Page is published
• Signed-out customers who continue activation are sent to Authentication, then back
• Signed-in customers can enter a code, choose a provider, and finish (or see Retry)
• /tveactivate?code= prefills the code
• Authentication at /authentication (or your site’s sign-in path) is published

Troubleshooting

Best Practices

• Use one TVE Activate System Screen at /tveactivate.
• Keep /tve and /tveactivate as separate pages — connect vs device activate.
• Enable TVE and providers in AppCMS before you expect Choose a Provider to fill.
• Publish Authentication so unsigned customers can return with their code.
• Turn on Activate Roku Device only on the page you use for Roku activation.
• Localize subtitle, placeholder, Activate, tooltip, and errors when the site has multiple live languages.
• Test signed-out, signed-in, deep-link code, and Retry before launch.
• Publish after every meaningful change — draft System Screens do not update production.

FAQs

Q. What page type should I use for VL TVE Activate 01?
System Screen. Set the path to /tveactivate.

Q. How is this different from VL TVE 01?
VL TVE 01 is the TV provider connect page (/tve). VL TVE Activate 01 is the device activation page (/tveactivate), where the customer enters a code from a TV or OTT device.

Q. How is this different from VL Link Your Account / Activate Device?
That is a separate System Screen module for linking a device to an account. Use VL TVE Activate 01 when the device is activating TVE with a provider code.

Q. Must the customer be signed in?
They can open the form signed out. Continuing activation typically requires sign-in, then a return to /tveactivate.

Q. Can I pass the code in the URL?
Yes. /tveactivate?code=YOURCODE fills the code and continues the flow.

Q. Where does the provider list come from?
On the website, from AppCMS TVE settings, matched to providers available through TV provider authentication.

Q. Does this page process subscription payment?
No. It activates a TVE device. If the site still requires a plan, the customer can be sent to checkout.

Q. Why are some field names misspelled?
Authetication Session Error and Case Sensitve Tooltip Text are the field names in Template Builder.

Important Information

• VL TVE Activate 01 must be placed on a System Screen at /tveactivate.
• This page is device activation. Provider connect without a device code uses VL TVE 01 at /tve.
• Continuing activation typically requires a signed-in customer. Sign-in uses your Authentication page.
• The website provider picker uses AppCMS TVE provider settings.
• Create the page, add the module, configure copy and colors, then publish.
• Cache can delay frontend updates by several minutes.
