Events

Events

Transport

All events flow through the global Signal bus on topic 'upload':

// UploadEvents.ts
import { Signal } from '@/lib/internal/Signal';

export const UPLOAD_SIGNAL_TOPIC = 'upload' as const;

export type UploadSignalPayload = {
  event: UploadEvent;
};

export function emitUploadEvent(event: UploadEvent): void {
  Signal.publish<UploadSignalPayload>(UPLOAD_SIGNAL_TOPIC, { event });
}

Subscribing:

import { Signal } from '@/lib/internal/Signal';
import type { UploadSignalPayload } from '@/lib/internal/UploadEngine/UploadEvents';

const unsub = Signal.subscribe<UploadSignalPayload>('upload', ({ event }) => {
  switch (event.type) {
    case 'UPLOAD_COMPLETED':
      console.log('File at:', event.fileUrl);
      break;
    case 'UPLOAD_NEEDS_ATTENTION':
      console.warn('Upload stuck:', event.reason);
      break;
  }
});

// cleanup
unsub();

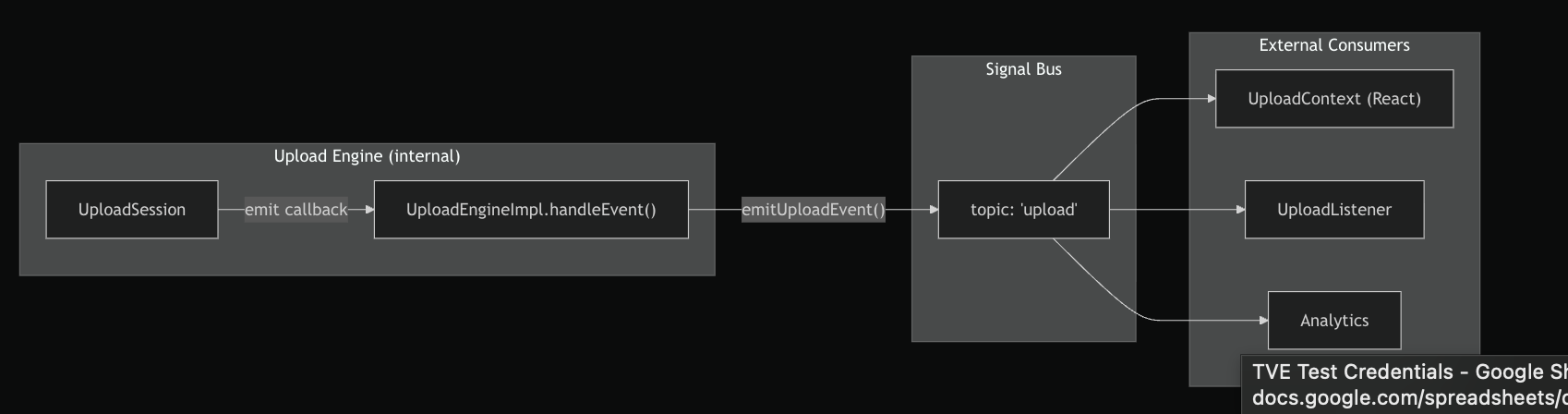

Event Flow Diagram

Event emission path:

1. UploadSession calls its emit callback (provided by UploadEngineImpl)
2. UploadEngineImpl.handleEvent() receives the event
3. For UPLOAD_ABORTED: removes persistence + deletes session first
4. Calls emitUploadEvent(event) → Signal.publish('upload', { event })

Event Union (complete)

type UploadEvent =
  | { type: 'UPLOAD_STARTED'; uploadId: UploadSessionId }
  | { type: 'UPLOAD_PROGRESS'; uploadId: UploadSessionId; progress: number }
  | { type: 'UPLOAD_PAUSED'; uploadId: UploadSessionId }
  | { type: 'UPLOAD_RESUMED'; uploadId: UploadSessionId }
  | { type: 'UPLOAD_COMPLETED'; uploadId: UploadSessionId; fileUrl: string }
  | { type: 'UPLOAD_NEEDS_ATTENTION'; uploadId: UploadSessionId; reason: string }
  | { type: 'UPLOAD_ABORTED'; uploadId: UploadSessionId };

Event Definitions

UPLOAD_STARTED

Emitted by: session.startInitialization() (idle → initializing)

Guarantees:

• Upload identity is stable from this point
• Persistence metadata has been set (if tenant cookies available)
• No bytes have necessarily been transferred yet

UPLOAD_PROGRESS

Emitted by: session.updateProgress(progress) (inside UploadWorker.uploadChunk())

How progress is calculated:

const progress = Math.round((completedPartNumbers.size / totalChunks) * 100);

Guarantees:

• Progress is monotonic — updateProgress() rejects non-increasing values
• Progress is clamped to 0–100
• Emitted per chunk completion (not per byte)

Consumers must tolerate:

• Gaps between progress values (e.g., 0 → 20 → 40 → 100)
• Variable frequency based on chunk size and network speed

UPLOAD_PAUSED

Emitted by: session.pause() (uploading → paused)

Guarantees:

• Worker's AbortController has been aborted (in-flight requests cancelled)
• State has been persisted to sessionStorage
• Queue slot has been freed

UPLOAD_RESUMED

Emitted by: UploadEngineImpl.resume() — emitted directly via emitUploadEvent(), not through the session

:::info Design note
resume() does not call session.resume(). The event is emitted immediately for UI feedback, while the actual paused → uploading transition happens later when the worker's initialize() runs.
:::

UPLOAD_COMPLETED

Emitted by: session.complete(fileUrl) (committing → completed)

Guarantees:

• All chunks have been uploaded and verified by backend
• completeMultipartUpload() has returned successfully
• File is durably available at fileUrl
• State is terminal — no further transitions

This is the authoritative signal for post-upload domain actions.

UPLOAD_NEEDS_ATTENTION

Emitted by: session.fail(stage, message) (any state → needs-attention)

Triggers:

• Chunk upload retries exhausted (stage: 'upload')
• Presigned URL fetch failed with non-retryable error (stage: 'upload')
• completeMultipartUpload() retries exhausted (stage: 'completion')
• Completion handler failed after retry (stage: 'completion')

Guarantees:

• Automatic retries have been exhausted or the error is non-retryable
• State has been persisted — user can resume or abort later
• The error field on the snapshot contains { stage, message }

UPLOAD_ABORTED

Emitted by: session.abort() (any non-terminal state → aborted)

Side effects in handleEvent():

• Removes persistence data for this session
• Deletes session from sessions Map
• Then publishes to Signal bus

Guarantees:

• Client-side work has stopped immediately
• State is terminal — this event is never followed by completion
• Session is removed from list() results

Event Timing Matrix

Events vs Snapshots vs Callbacks

:::danger
Domain correctness must be driven by events, not callbacks. Callbacks may be lost if the originating UI unmounts.
:::

Delivery Guarantees

The engine guarantees:

• Events for a single upload are emitted in logical lifecycle order
• No event is emitted twice for the same state transition
• UPLOAD_ABORTED is never followed by UPLOAD_COMPLETED

Consumers must tolerate:

• Missing intermediate UPLOAD_PROGRESS events
• Late subscriber registration (events are not replayed)
• App reloads (subscribe again after rehydration)
