# Data Model

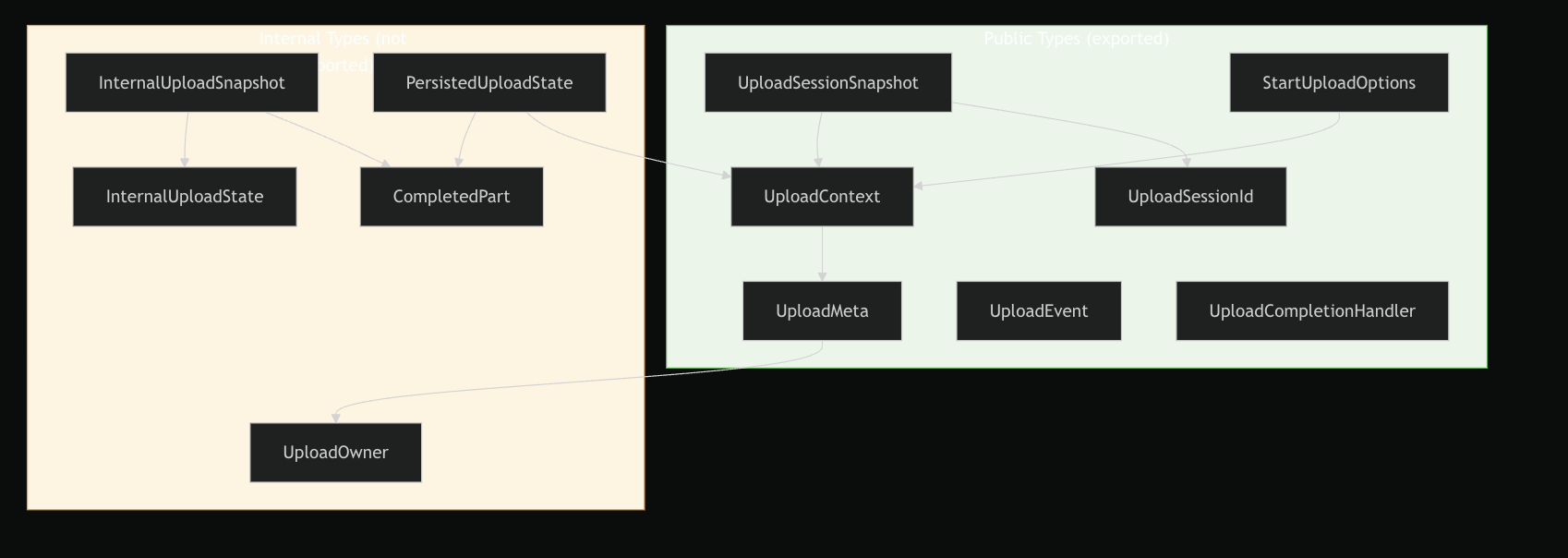

Type Boundary Diagram

Public Types

UploadSessionId

type UploadSessionId = string;

Format: upl_<timestamp>_<random6> (e.g., upl_1711100400000_k3f9x2).

Generated by UploadEngineImpl.generateUploadId(). Stable and never reused.

UploadContext

Describes where and why an upload was initiated. Write-once, read-only for the entire lifecycle.

type UploadContext = {
  source: 'account-avatar' | 'content-create' | 'content-details' | 'brand-settings' | string;

  contentType:
    | 'image'
    | 'video'
    | 'audio'
    | 'document'
    | 'closedCaptions'
    | 'brand'
    | 'brand-video'
    | 'androidKeystore'
    | 'firetvKeystore'
    | 'androidLauncherXML';

  entityId?: string; // contentId, brandId, userId, etc.
  dropZoneKey?: string; // originating drop zone (e.g. "_16x9Images")
  meta?: UploadMeta; // immutable intent metadata
};

The engine stores this object but never interprets it.

UploadMeta

type UploadMeta = Readonly<{
  intent: string; // e.g. "CREATE_VIDEO", "UPLOAD_BRAND_IMAGE"
  payload: Record<string, unknown>; // arbitrary serializable domain data
  owner?: UploadOwner; // content-level routing for UploadListener
}>;

type UploadOwner = {
  contentType: ContentTypeEnum | 'video'; // 'video' is special — backend doesn't accept 'vod'
  contentId: string;
};

• Written once at start() — immutable thereafter
• Survives UI unmounts, route changes, and page reloads (via persistence)
• UploadListener reads intent + owner to route post-upload domain actions

UploadSessionSnapshot

The only data shape UI layers may consume. Produced by toPublicSnapshotAdapter().

type UploadSessionSnapshot = {
  uploadId: UploadSessionId;
  fileName: string;
  fileSize: number;
  state: 'uploading' | 'paused' | 'completed' | 'needs-attention' | 'aborted';
  progress: number; // 0–100, monotonic
  context: UploadContext;
  fileUrl?: string; // present only when state === 'completed'
  error?: {
    stage: 'upload' | 'completion';
    message: string;
  }; // present only when state === 'needs-attention'
};

UploadEvent

Discriminated union of 7 event types. See events.md for full contract.

type UploadEvent =
  | { type: 'UPLOAD_STARTED'; uploadId: UploadSessionId }
  | { type: 'UPLOAD_PROGRESS'; uploadId: UploadSessionId; progress: number }
  | { type: 'UPLOAD_PAUSED'; uploadId: UploadSessionId }
  | { type: 'UPLOAD_RESUMED'; uploadId: UploadSessionId }
  | { type: 'UPLOAD_COMPLETED'; uploadId: UploadSessionId; fileUrl: string }
  | { type: 'UPLOAD_NEEDS_ATTENTION'; uploadId: UploadSessionId; reason: string }
  | { type: 'UPLOAD_ABORTED'; uploadId: UploadSessionId };

UploadCompletionHandler<T>

type UploadCompletionHandler<T = unknown> = (args: {
  fileUrl: string;
  file: File;
  context: UploadContext;
}) => Promise<T>;

Best-effort. Failure here does not invalidate the upload.

UploadDomainProcessedEvent<DomainShape>

Emitted after domain actions complete (outside the engine, by UploadListener):

type UploadDomainProcessedEvent<DomainShape> = {
  owner: UploadOwner;
  uploadId: UploadSessionId;
  dropZoneKey?: string;
  entity: DomainShape;
};

Internal Types

:::warning
These types are not exported and may change without notice. UI/feature modules must never depend on them.
:::

InternalUploadState

The 10-state enum governing the state machine (see lifecycle.md):

type InternalUploadState =
  | 'idle'
  | 'initializing'
  | 'uploading'
  | 'paused'
  | 'retrying'
  | 'finalizing'
  | 'committing'
  | 'completed'
  | 'needs-attention'
  | 'aborted';

Internal → Public mapping:

InternalUploadSnapshot

Full internal state held by UploadSession:

type InternalUploadSnapshot = {
  uploadId: UploadSessionId;
  file: File;
  state: InternalUploadState;
  progress: number;
  context: UploadContext;
  uploadServiceData?: {
    uploadId: string; // multipart upload ID from backend
    key: string; // S3 object key
    bucket: string; // S3 bucket
    prefixUrl: string; // URL prefix for final file URL
    chunkSize: number; // server-authoritative chunk size
    totalChunks: number; // ceil(fileSize / chunkSize)
  };
  completedParts: CompletedPart[];
  fileUrl?: string;
  error?: { stage: 'upload' | 'completion'; message: string };
  persistence?: { key: string; createdAt: number };
  chunkConfig?: { chunkSize: number; windowSize: number };
  internalFlags?: { enableParallelChunkProcessing?: boolean };
};

CompletedPart

type CompletedPart = {
  PartNumber: number;
  ETag: string;
};

Maps directly to AWS S3 multipart completion format. Sorted by PartNumber before sending to /complete.

PersistedUploadState

Serializable, tenant-scoped state saved to sessionStorage:

type PersistedUploadState = {
  key: string; // "<siteId>:<site>:<epoch>"
  tenant: { site: string; siteId: string };
  createdAt: number;
  uploadId: UploadSessionId;
  fileMeta: { name: string; size: number; type: string };
  context: UploadContext;
  uploadServiceData?: {
    /* same as InternalUploadSnapshot */
  };
  completedParts: CompletedPart[];
  progress: number;
  state: 'paused' | 'uploading' | 'needs-attention';
  chunkConfig?: { chunkSize: number; windowSize: number };
  internalFlags?: Record<string, unknown>;
};

:::info Persistence rules

• Only paused and needs-attention states are rehydrated on app reload
• File object is not persisted (not serializable) — rehydrated uploads create a placeholder
• Persistence key format: <siteId>:<site>:<epoch> (e.g., acme123:ACME:1768765855488)
  :::

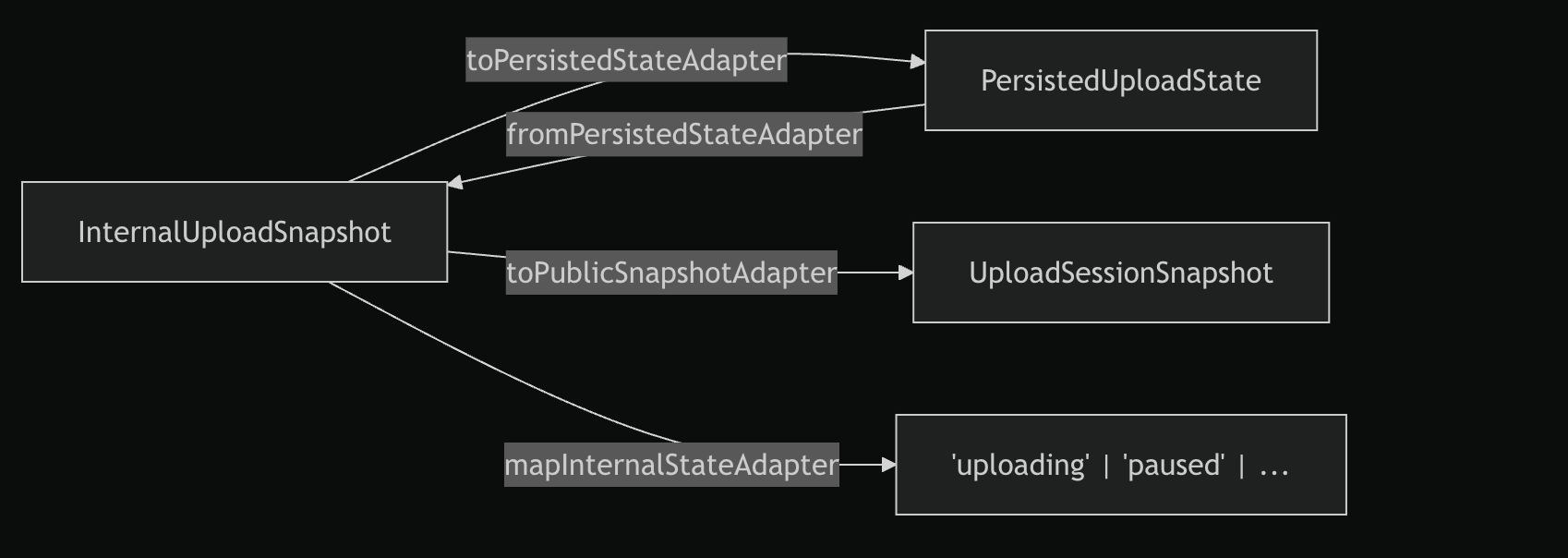

Data Adapters

The persistence.adapter.ts file provides four adapter functions bridging internal ↔ persisted ↔ public:

Events vs Snapshots
