Failure Modes

Failure Modes

Retry Policy (from source)

// RetryPolicy.ts
const RETRY_CONFIG = {
  'chunk-upload': { maxRetries: 3, baseDelayMs: 500 },
  'presigned-url': { maxRetries: 2, baseDelayMs: 500 },
  'complete-upload': { maxRetries: 2, baseDelayMs: 1000 },
  'completion-handler': { maxRetries: 1, baseDelayMs: 0 },
};

Backoff: Linear — delay = baseDelayMs × attempt

Retryable errors (isRetryableError()):

• TypeError — network/fetch-level failures
• HTTP 500+ — server errors
• HTTP 408 — request timeout
• HTTP 429 — rate limited

Non-retryable: HTTP 400, 403, 404, and any error not matching the above.

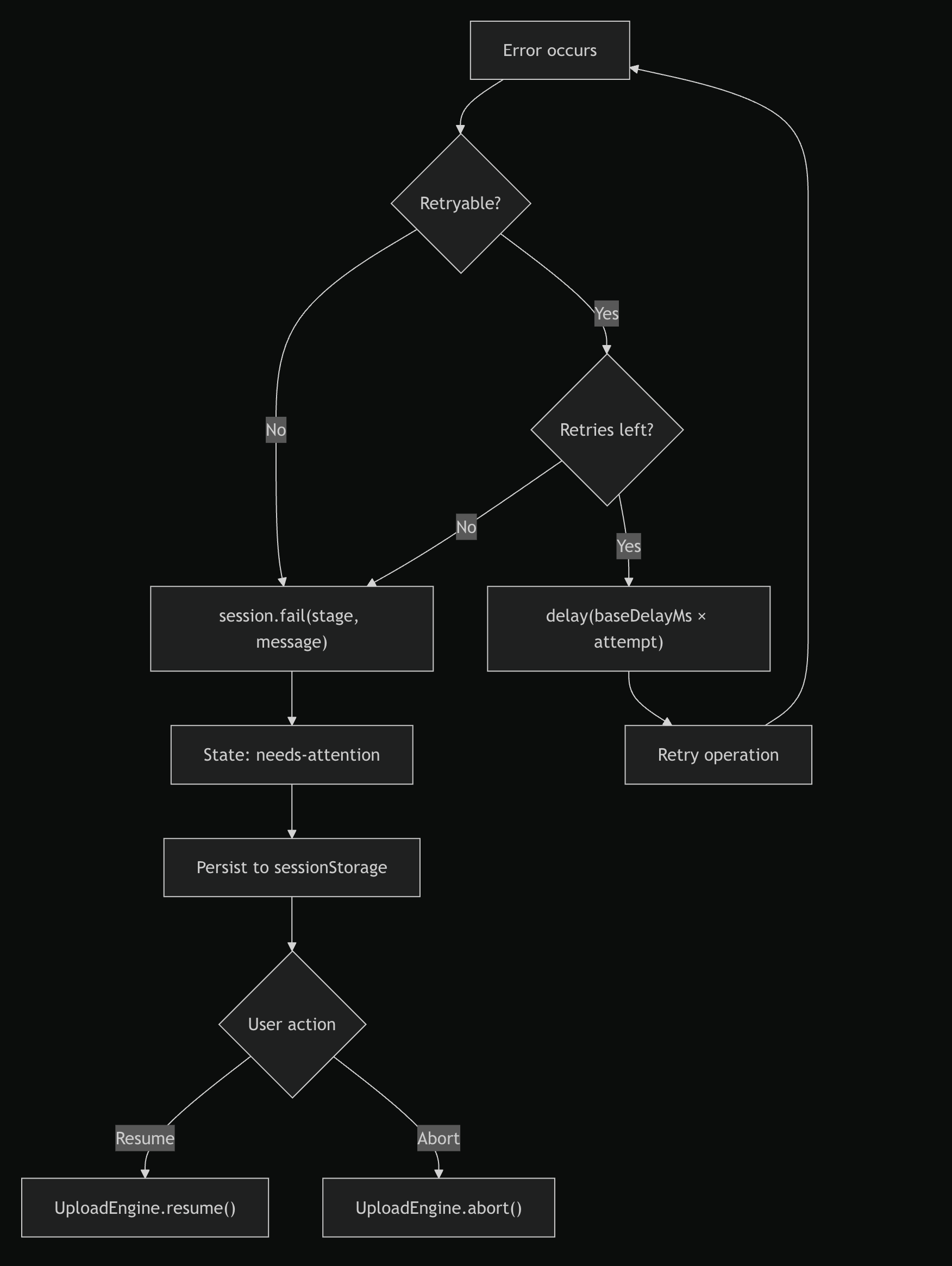

Failure Flow Diagram

Failure Mode: Chunk Upload Failure

Stage: 'upload' | Max retries: 3 | Backoff: 500ms linear

What happens in UploadWorker.uploadChunk():

1. file.slice(startByte, endByte) → PUT to presigned S3 URL
2. On failure: check isRetryableError() && canRetry('chunk-upload', attempt)
3. If retryable: session.markRetrying() → delay → session.startUploading() → retry
4. If exhausted: error propagates to run() catch block

In run() catch block:

session.fail('upload', error.message); // → needs-attention
const persisted = toPersistedStateAdapter(session.getSnapshot());
if (persisted) UploadPersistence.save(persisted);
session.notifyError(error); // calls onError callback

Recovery: User calls resume() → worker resumes from getContiguousCompletedPart() + 1

Failure Mode: Presigned URL Fetch Failure

Stage: 'upload' | Max retries: 2 | Backoff: 500ms linear

What happens in UploadWorker.uploadWindow():

1. UploadService.getBatchedPresignedUrls() fails
2. If retryable && retries left: delay → retry
3. If non-retryable or exhausted: throws — caught by run()

Distinctive behavior: Non-retryable URL errors (e.g., 403) fail the upload immediately without exhausting chunk retries.

Failure Mode: Multipart Completion Failure

Stage: 'completion' | Max retries: 2 | Backoff: 1000ms linear

What happens in UploadWorker.completeMultipart():

1. session.startFinalizing() → uploading → finalizing
2. UploadService.completeMultipartUpload() sends sorted parts
3. On failure: if retryable && retries left → delay → retry
4. If exhausted:

session.fail('completion', error.message); // → needs-attention
const persisted = toPersistedStateAdapter(session.getSnapshot());
if (persisted) UploadPersistence.save(persisted);
return; // does NOT throw — run() continues to finally

Key: Completion failure is handled locally (returns, doesn't throw). All chunks are uploaded — only the final S3 multipart complete call failed.

Failure Mode: Completion Handler Failure

Stage: 'completion' | Max retries: 1 | Backoff: none

What happens in UploadWorker.runCompletionHandler():

1. Calls onComplete({ fileUrl, file, context })
2. On failure: 1 retry (no delay)
3. If still fails:

session.fail('completion', error.message);  // → needs-attention
UploadPersistence.save(toPersistedStateAdapter(...));
session.notifyError(error);
return;

:::warning
Handler failure does not invalidate the upload. The file is already at fileUrl. The needs-attention state with stage: 'completion' signals that domain-side processing failed, not the upload itself.
:::

Failure Mode: Duplicate Objects in Storage

Observable: Multiple S3 objects for the same logical file; orphaned partial uploads.

Why it happens:

• Retries may call initMultipartUpload() again (new multipart ID)
• Abort stops client work but doesn't clean S3
• Resume may overlap with previous multipart session

Why it's acceptable:

• Only one fileUrl is ever referenced (engine's prefixUrl + key)
• Storage is not the source of truth — domain records are
• Backend lifecycle rules handle cleanup asynchronously

Failure Mode: Lost UI Callbacks

Observable: onComplete / onError callbacks never fire.

Why it happens:

• Callbacks are closures tied to the React component that called start()
• If the component unmounts, callbacks are garbage collected

Why it's acceptable:

• Callbacks are best-effort — documented as advisory
• Completion is durable state (UPLOAD_COMPLETED event + snapshot)
• Domain correctness must be driven by Signal events, not callbacks

Failure Mode: Missing Progress Events

Observable: Progress jumps (e.g., 0 → 20 → 60 → 100).

Why it happens:

• Progress is emitted per chunk, not per byte
• With 5 MB chunks on a 25 MB file, only 5 progress events total
• Parallel mode may complete multiple chunks before the next render

Why it's acceptable:

• Progress is monotonic (enforced by updateProgress())
• Snapshots (get()) always reflect current progress
• UI should poll snapshots for display, not rely on event frequency

Failure Mode: Rehydrated Upload Can't Resume Without User Action

Observable: Rehydrated uploads sit in paused or needs-attention state.

Why it happens:

• File object is not serializable — cannot be persisted
• Rehydrated sessions have uploadServiceData and completedParts but no File
• Worker needs the File to slice chunks

Why it's acceptable:

• Rehydrated uploads appear in list() — user can see them
• User can resume() (if they provide the file again) or abort()
• This is a conscious trade-off: persistence preserves progress metadata, not binary data

What Is NOT an Acceptable Failure

These indicate real bugs and must be treated as correctness failures:
