Responsibilities

Core Responsibility

The Upload Engine is responsible for reliably transferring files from the client to storage under real-world conditions.

It guarantees that:

uploads can start, pause, resume, abort, and complete
upload progress and state are explicit and observable
completion is durable and not tied to UI lifetime
failures resolve into known, terminal states

The engine does not care why a file is uploaded.
It cares only that the file is uploaded correctly.

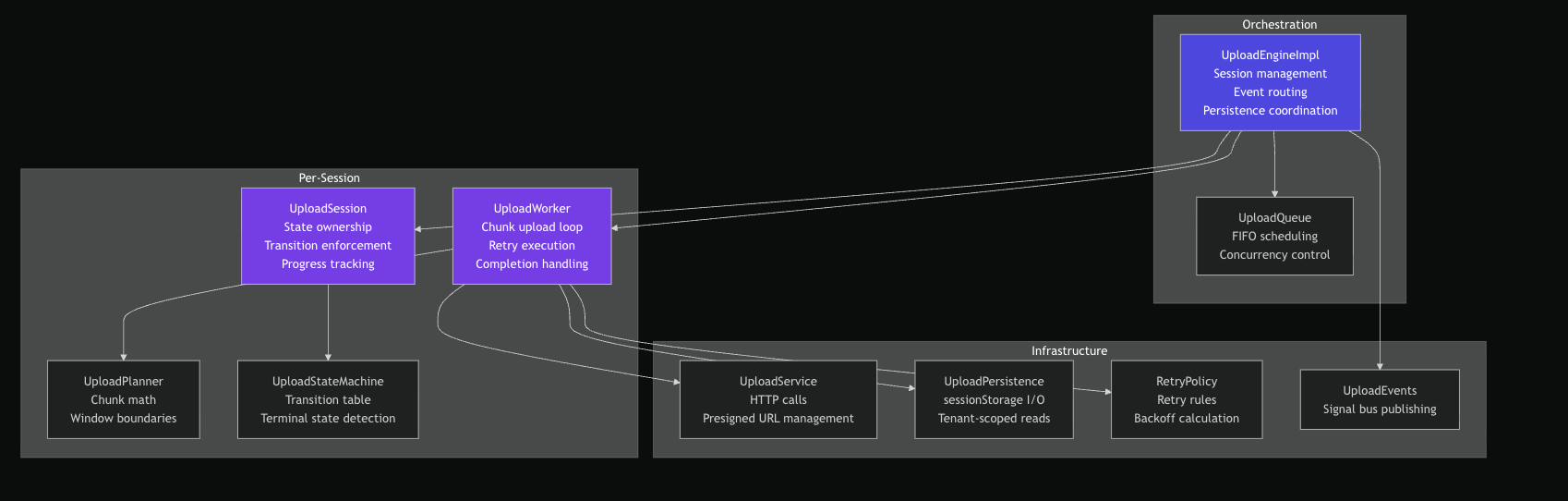

Responsibility Map by Module

Each module has exactly one job. The following table maps actual class responsibilities to source:

UploadEngineImpl — Singleton Orchestrator

File: UploadEngine.ts

Responsibility	Methods	What it does
Session creation	`start<T>(options)`	Creates `UploadSession`, creates `UploadWorker`, enqueues in `UploadQueue`
Session control	`pause()`, `resume()`, `abort()`	Delegates to sessions and workers; manages queue slot release
Event routing	`handleEvent(event)`	Receives events from sessions, calls `emitUploadEvent()`, persists state
Persistence coordination	`rehydrateFromPersistence()`	Loads `PersistedUploadState[]` on construction, recreates sessions
Snapshot mapping	`toPublicSnapshot()`, `toPersistedState()`, `mapInternalState()`	Uses adapter layer to convert internal → public types
Worker cleanup	`cleanupWorker(uploadId)`	Removes worker reference, releases queue slot

Does NOT own: UI state, domain logic, HTTP calls, chunk math, retry decisions.

UploadSession — Per-Upload State Owner

File: UploadSession.ts

Responsibility	Methods	What it does
State transitions	`startUploading()`, `pause()`, `resume()`, `complete()`, `fail()`, `abort()`	Calls `transition()` from state machine; throws on illegal transition
Progress tracking	`updateProgress(progress)`	Updates `InternalUploadSnapshot.progress` and `completedParts`
Snapshot exposure	`getSnapshot()`, `get state`	Returns immutable `InternalUploadSnapshot`
Event delegation	`emit(event)`	Calls the `EventEmitter` callback passed from `UploadEngineImpl`
Callback invocation	`onComplete?.(snapshot)`, `onError?.(error)`	Best-effort UI callback delivery

Does NOT own: Upload execution, HTTP calls, retry logic, persistence.

UploadWorker — Per-Session Executor

File: UploadWorker.ts

Responsibility	Methods	What it does
Upload execution	`run()`	End-to-end upload lifecycle: init → upload windows → complete
Initialization	`initialize()`	Calls `UploadService.initMultipartUpload()`, creates `UploadPlanner`
Chunk loop	`uploadAllWindows()`, `uploadWindow()`, `runChunkWindow()`	Iterates chunk windows, uploads 5 chunks in parallel
Single chunk upload	`uploadChunk()`	PUT to presigned URL with retry, creates `CompletedPart`
Completion	`completeMultipart()`	Calls `UploadService.completeMultipartUpload()` with retry
Completion handler	`runCompletionHandler(fileUrl)`	Calls `session.complete()`, invokes `onComplete`, persists state
Pause/abort support	Checks `pauseRequested` and `abortController.signal`	Throws `PauseError` or `AbortError` at chunk boundaries
Persistence	Calls `toPersistedStateAdapter()`	Saves state after progress and completion

Does NOT own: State transitions (delegates to session), queue scheduling, event publishing.

UploadQueue — FIFO Concurrency Scheduler

File: UploadQueue.ts

Responsibility	Methods	What it does
Enqueueing	`enqueue(uploadId)`	Adds to pending queue; calls `maybeStartNext()`
Concurrency control	`maybeStartNext()`	Starts next upload if `active.size < concurrencyLimit` (default 5)
Slot release	Called by `onFinish` callback	Removes from active set; calls `maybeStartNext()`
Pause slot management	`remove()`, `prioritize()`	Removes paused uploads; moves resumed uploads to front

Does NOT own: Upload execution, state transitions, persistence.

UploadPlanner — Pure Chunk Math

File: UploadPlanner.ts

Responsibility	Methods	What it does
Total chunks	Constructor	Computes `totalChunks = ceil(fileSize / chunkSize)`
Chunk boundaries	`getChunk(partNumber)`	Returns `{ partNumber, startByte, endByte, size }`
Window planning	`getWindow(startPart)`	Returns contiguous window of chunks for batch upload

Does NOT own: Upload execution, HTTP calls, state management. Pure computation only.

UploadStateMachine — State Transition Table

File: UploadStateMachine.ts

Responsibility	Exports	What it does
Transition validation	`transition(from, to)`	Returns new state or throws if transition is illegal
Terminal detection	`isTerminalState(state)`	Returns `true` for `completed`, `aborted`, `failed`, `completion_failed`
Attention detection	`requiresAttention(state)`	Returns `true` for `needs_attention`

Does NOT own: State storage, event emission, upload logic. Pure state table.

UploadService — Backend HTTP Adapter

File: UploadService.ts

Responsibility	Static Methods	What it does
Init multipart	`initMultipartUpload(args)`	POST to `Endpoints.upload.init`; returns `{ uploadId, chunkSize, totalChunks }`
Presigned URLs	`getBatchedPresignedUrls(args)`	POST to `Endpoints.upload.batchedPresignedUrls`; returns URL map
Complete multipart	`completeMultipartUpload(args)`	POST to `Endpoints.upload.complete`; sends completed parts

Does NOT own: Retry logic (caller retries), state management, chunk computation.

UploadPersistence — sessionStorage Adapter

File: UploadPersistence.ts

Responsibility	Static Methods	What it does
Save	`save(state)`	Writes `PersistedUploadState` to `sessionStorage` keyed by upload ID
Remove	`remove(key)`	Deletes single upload from storage
Clear	`clearAll()`	Removes all persisted uploads
Load all	`loadAll()`	Returns all persisted uploads
Load by tenant	`loadForTenant(site, siteId)`	Filters persisted uploads by tenant

Does NOT own: State mapping (done by adapter), rehydration logic (done by engine).

RetryPolicy — Retry Rules

File: RetryPolicy.ts

Responsibility	Exports	What it does
Retry eligibility	`canRetry(category, attempt)`	Checks attempt count against per-category max
Error classification	`isRetryableError(error)`	Returns `true` for network errors and 5xx HTTP status
Delay calculation	`getRetryDelayMs(attempt)`	Linear backoff: `1000 * attempt` ms

Does NOT own: Retry execution (done by worker), error handling, state transitions.

UploadEvents — Signal Bus Bridge

File: UploadEvents.ts

Responsibility	Exports	What it does
Event publishing	`emitUploadEvent(event)`	Calls `Signal.emit('upload', event)` — the only outbound channel

Does NOT own: Event creation (done by engine), event subscription (done by consumers).

What the Engine Explicitly Does NOT Own

Responsibility	Why it's excluded	Who owns it
UI rendering (modals, progress bars)	Engine is UI-agnostic	Feature modules, `UploadContext`
Domain/business actions (CMS entities)	Engine transfers files, not domain objects	`UploadListener`
Storage hygiene (cleanup, dedup)	Not correctness-critical	Backend lifecycle rules
Interpreting `UploadContext<T>` metadata	Engine passes it through opaquely	`UploadListener`
UI `onComplete` callback reliability	Best-effort only; completion state is durable	Consumer responsibility
Authentication	Engine reads token via `CookieManager`	Auth infrastructure
Endpoint configuration	Engine reads from `Config` and `Endpoints`	Config infrastructure

Responsibility Split: Engine vs External Layers

Layer	Owns	Does NOT Own
`UploadEngine`	File transfer orchestration, state machine, event emission	UI state, domain logic, storage cleanup
`UploadContext` (React context)	Subscribing to events, storing snapshots, driving upload UI	Engine decisions, domain calls, upload control
`UploadListener` (React effect)	Observing facts, routing by intent, triggering domain side-effects	Upload state mutation, event emission, UI rendering
`persistence.adapter.ts`	Mapping internal ↔ public ↔ persisted types	State transitions, business logic
