# Architecture

Goal

Keep trim behavior stable and reusable by separating capability logic from React and UI composition.

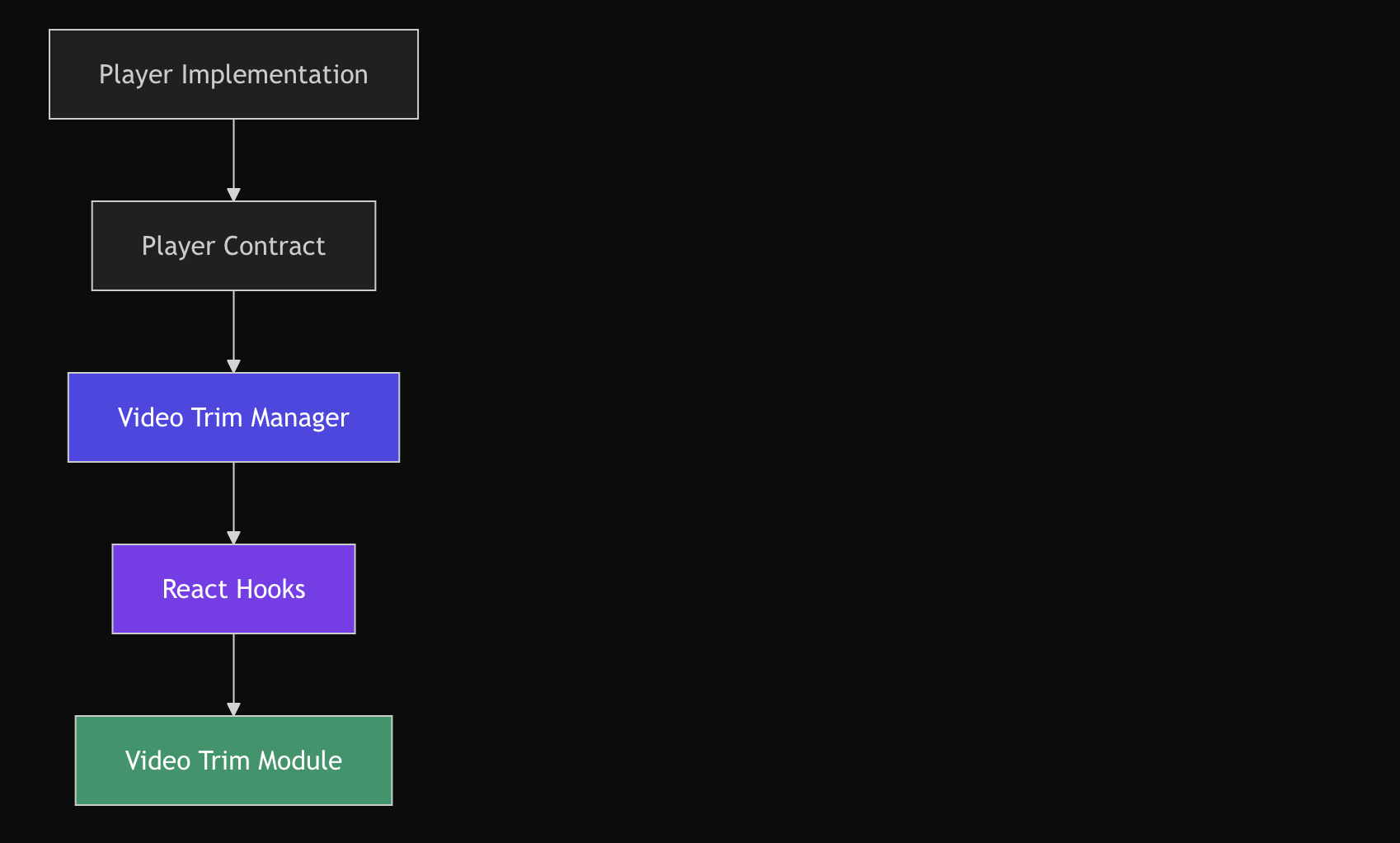

Layered Flow


Player Implementation
  ↓
Player Contract
  ↓
Video Trim Manager
  ↓
React Hooks
  ↓
Video Trim Module

Ownership Boundary

Layer Owns Must Not Own
Manager State, validation, history, playback sync, behavior events React lifecycle, rendering, backend workflow
Hooks React bridge and state projection Business-rule ownership, duplicate trim state
Module Rendering, interaction wiring, UI composition Core trim logic and state authority

Dependency Rules

Allowed direction is strictly one-way:

Player -> Contract -> Manager -> Hooks -> Module

Forbidden direction examples:

  • Module directly mutating manager internals
  • Hooks re-implementing validation logic
  • Manager importing React or Next runtime types

Why This Boundary Exists

  • Behavior correctness is independent of UI churn
  • Tests can validate core trim logic without browser rendering
  • Contract adapters enable player replacement without touching manager behavior
  • Future extraction into SDK/package remains possible
